feat(chat): chat_sources + inline citations (RAG answer grounding)

[mplatts]

Closes #615

Stack position

1 of 4 in the 4.18.0 chat stack. This branch (feat/chat-sources) is cut from origin/main and is the base of the other three:

#	Issue	Branch	Builds on
1	#615 chat_sources + citations	feat/chat-sources	main
2	#616 composer attachments	feat/chat-attachments	feat/chat-sources
3	#617 chat questionnaire	feat/chat-questionnaire	feat/chat-attachments
4	#618 tool_call states	feat/chat-tool-call	feat/chat-questionnaire

The PR is opened against main because this one genuinely sits on main, so the diff here is exactly this issue's work. Please merge in order 615 → 616 → 617 → 618 — the later PRs in the stack will show a cumulative diff until the ones below them land.

Summary

Answer grounding for the chat family. Prompt the model to cite with [^N] footnote markers, hand the same source maps to markdown/1, and the markers become numbered chips; chat_sources/1 renders the deduped source list underneath.

• citation/1 — the inline chip. Superscript number, preview card (favicon, title, domain, snippet) on hover or focus, activating it opens the source in a new tab.
• chat_sources/1 — native <details>/<summary>, matching reasoning/1's no-JS approach. Collapsed it reads "4 sources" with a stacked-favicon cluster. Deduped by URL, expanded opens it on render, max_visible tucks the overflow behind a nested "Show all (N)" reveal, and a nil/empty list renders nothing at all (no empty shell).
• markdown/1 gains a sources attr; to_html/2 gains a :sources option for the streaming path.

Sources are plain maps — %{id, url, title, snippet, favicon_url}, string or atom keys both accepted. Everything but url is optional: no favicon_url falls back to a letter avatar, no snippet is just a shorter row.

How the marker → chip transform works

Option (b) from the issue: post-process the sanitized HTML. MDEx's footnote extension is not enabled here, so [^N] survives as literal text in the output, and splicing after sanitization means the chip markup can't be eaten by the sanitizer.

The output is walked as a tag/text token stream, so markers are only ever rewritten inside text nodes — never inside an attribute value, and never inside <pre>/<code> (a [^1] in a code sample stays a code sample). The chip markup is minted from the numeric index plus Phoenix.HTML.html_escaped source fields, so nothing model-controlled reaches the page as live markup. Only complete markers match, so a half-streamed [^ is left untouched until its closing bracket arrives.

A marker resolves to the source whose id matches N, falling back to the Nth source, so an id-less list still works positionally.

Deviations from the issue's sketch

1. The chip is an <a>, not a <button>. The issue's a11y section says "real <button>s ... never bare <sup> text". The intent — a real interactive element carrying an accessible name — is met, but the action is "open this URL in a new tab", which is an anchor's job. As a <button> it would need JS to navigate; as an <a href target="_blank" rel="noopener noreferrer"> it works with zero JS, gets middle-click/copy-link for free, and matches external_links/1 in the same file. Happy to flip it if you'd rather hold the line on <button>.

2. No popover / hover_card machinery — the preview card is pure CSS. hover_card/1 hasn't landed, and composing PetalPopover would have meant a hook and an id-per-chip for aria-controls, on markup that is spliced into a raw HTML string with no assigns to generate ids from. The card is a sibling <span> shown on :hover / :focus-within of the wrapper. This is the CSS-first house rule, and it keeps the "no new positioning system" non-goal honest. Trade-off: no flip/collision handling — the card is fixed above-left of the chip.

3. The preview card is aria-hidden="true". It is a visual affordance whose title and domain are already in the chip's accessible name, and whose snippet is reachable in the chat_sources list below. This avoids inventing ids for aria-describedby inside spliced HTML and avoids a screen reader reading the same title twice per chip.

4. to_html/2 rather than a separate function — def to_html(content, opts \\ []), so existing to_html/1 call sites are untouched.

Backward compatibility

No existing test was modified or deleted, and no existing attr default changed. Every pre-existing chat test passes unmodified.

• markdown/1 without sources (the default, nil) is byte-identical to before — there's an explicit test for it ("without sources the marker passes through as plain text (today's behaviour)").
• to_html/1 still exists and behaves exactly as it did (tested).
• citation/1 and chat_sources/1 are net-new function names. Chat is not pulled in by use PetalComponents, so neither can collide with a consumer's helpers.
• CSS is appended in a new @layer components { } block at the tail of assets/default.css — nothing above it reflowed, and being inside a layer means consumer utilities passed via class still win.

Verification

Check	Result
mix format --check-formatted	clean
mix compile --force --warnings-as-errors	clean
mix credo	14 refactoring / 31 readability — identical to origin/main, zero new entries
mix test	940 tests, 0 failures, 1 skipped (baseline 913 / 0 / 1 — +27 new)
npm test	157 passed (baseline 157 — no JS touched)

Playground

Extended the existing AI Chat page (slug chat) — no new nav slug.

• The seeded thread now carries a mocked RAG answer citing 4 sources with [^N] markers, with the chat_sources row underneath.
• A "Citations while streaming" section: each tick re-renders the growing buffer through to_html(buffer, sources: sources) and pushes it at a format="markdown" streaming_text, so chips light up as their markers complete.
• Dials: sources expanded (closed / open) and max_visible (2 / 5 / all).

Verified light + dark, keyboard-only (Tab reaches a chip, the preview card opens on focus, Enter opens the source), and the streaming demo end to end.

Accessibility

• Chips are real links with aria-label="Source N: {title}" — the number alone is never the accessible name.
• Source links: target="_blank" + rel="noopener noreferrer".
• Favicons are decorative (alt="", aria-hidden="true", loading="lazy").
• The sources row uses native <summary> semantics — no ARIA needed.
• focus-visible rings in primary on the chip, the summary and each source link. No persistent :focus fills.
• prefers-reduced-motion collapses the card reveal and chevron rotation transitions.

[codecov]

Codecov Report

❌ Patch coverage is 96.00000% with 4 lines in your changes missing coverage. Please review.
✅ Project coverage is 92.46%. Comparing base (871b2cf) to head (16401dc).

Files with missing lines	Patch %	Lines
lib/petal_components/chat.ex	95.29%	4 Missing ⚠️

Additional details and impacted files

@@            Coverage Diff             @@
##             main     #643      +/-   ##
==========================================
+ Coverage   92.40%   92.46%   +0.06%
==========================================
  Files         119      119
  Lines        5066     5164      +98
==========================================
+ Hits         4681     4775      +94
- Misses        385      389       +4

☔ View full report in Codecov by Harness.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:

• ❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.
• 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

[mplatts]

Screenshots

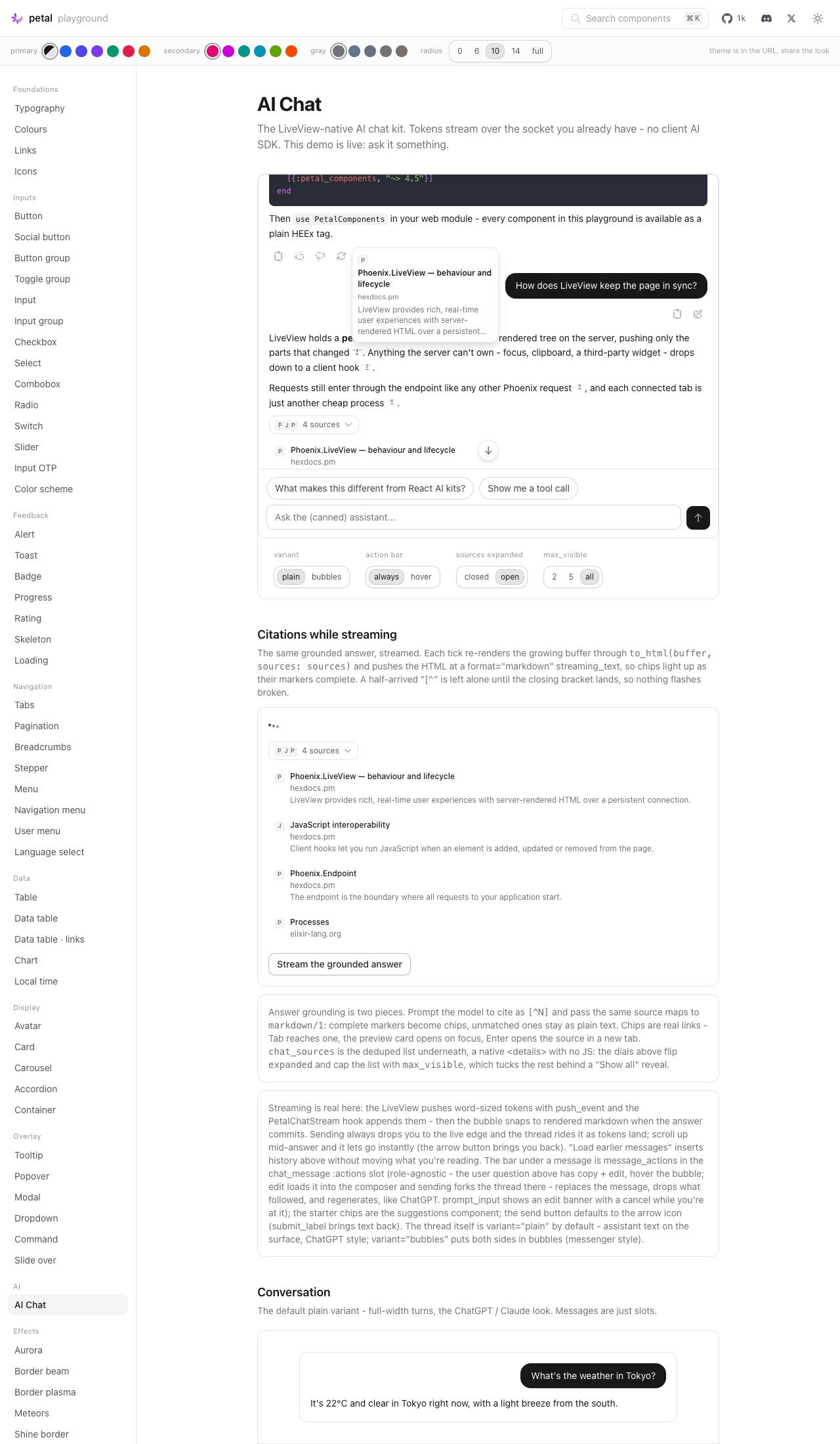

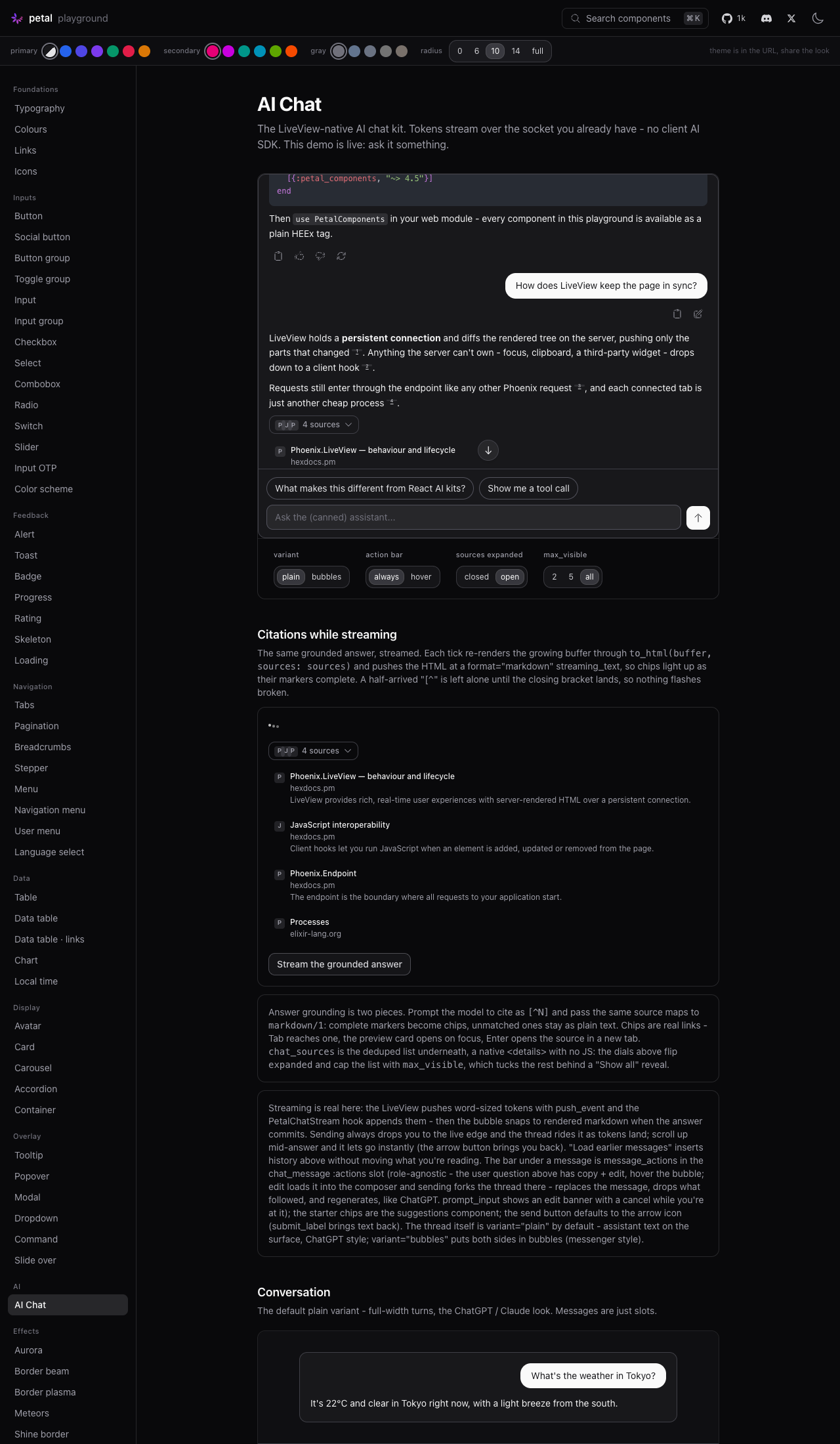

Citation card and sources expanded

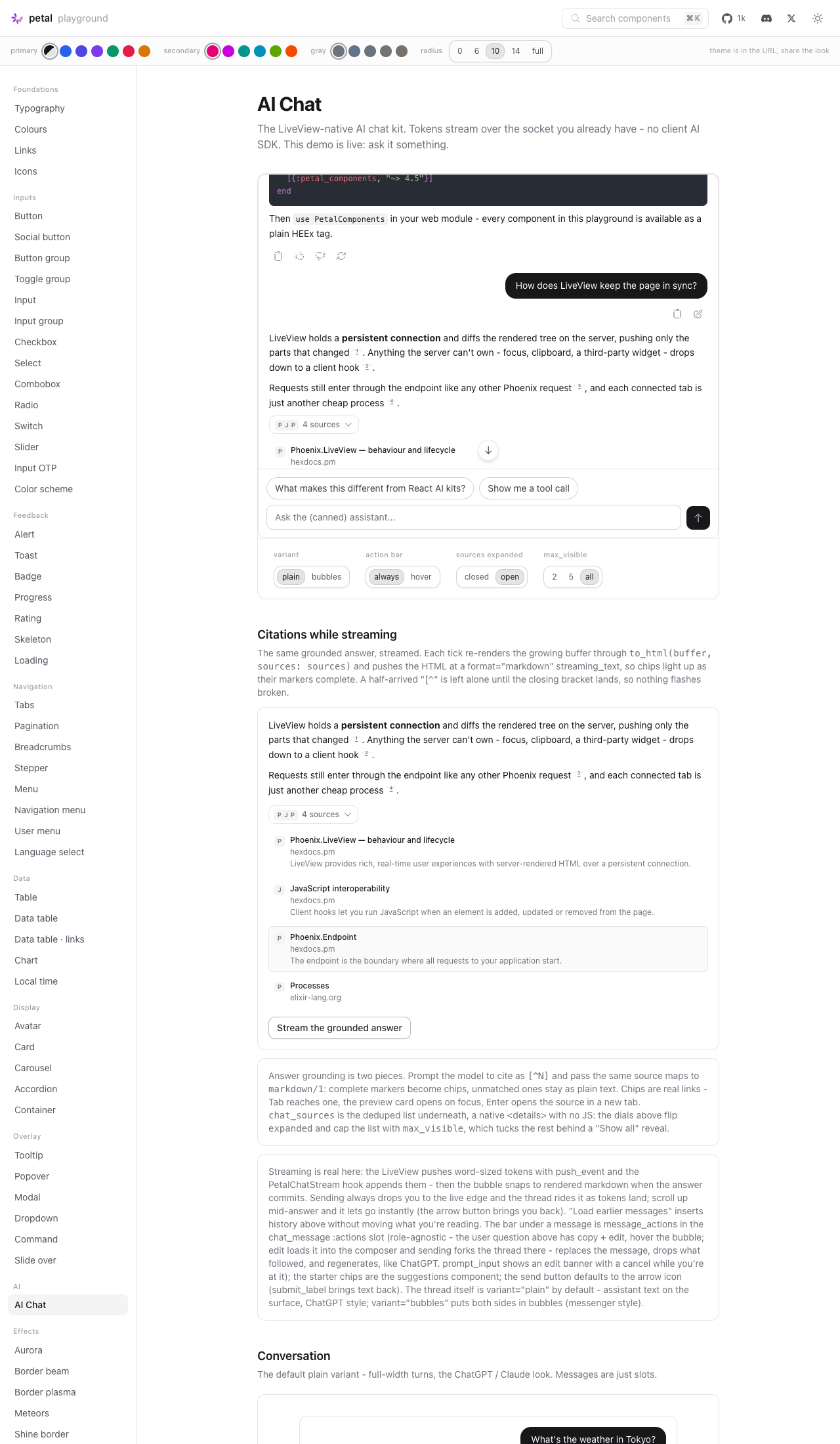

Streaming

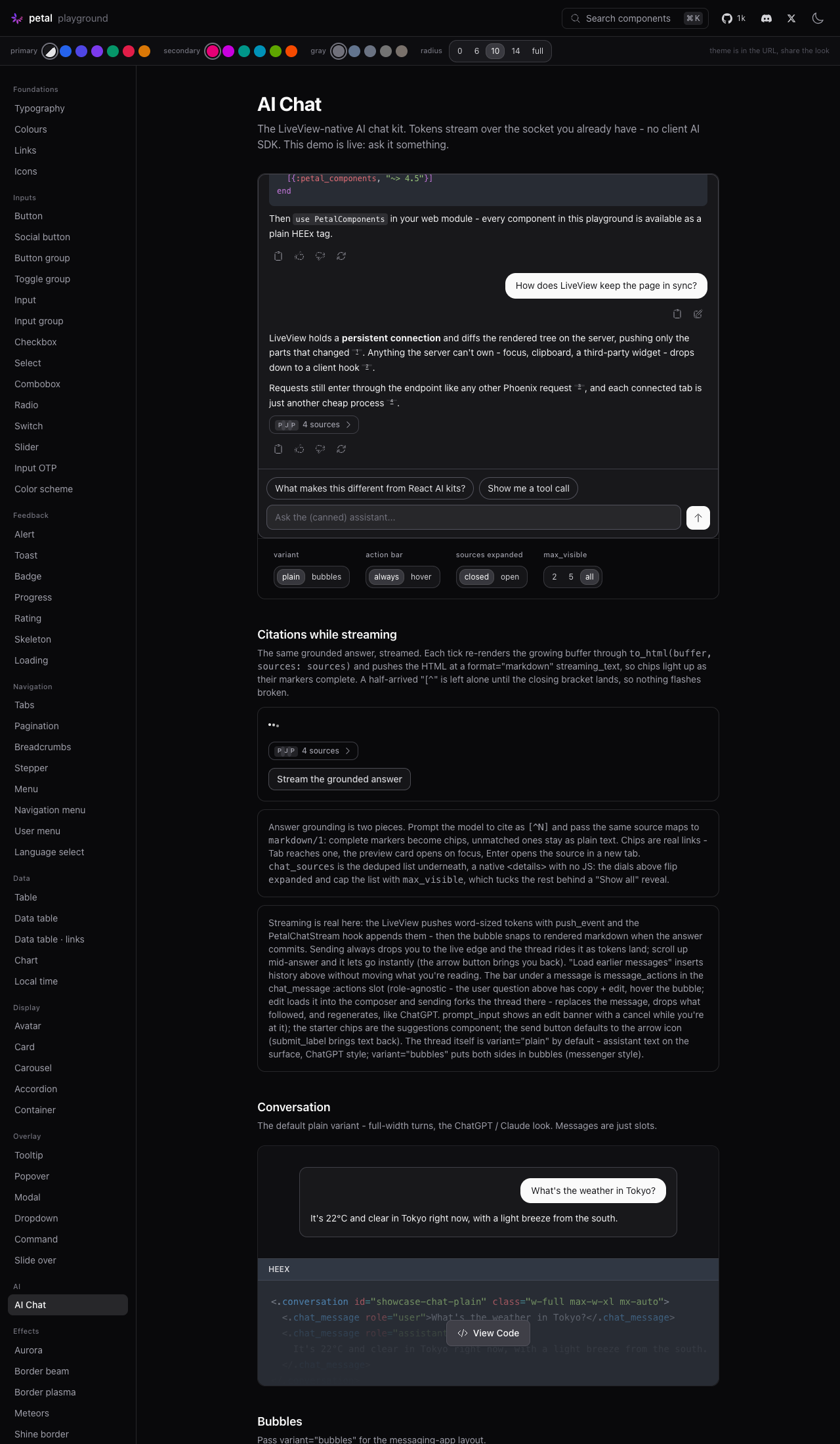

Light / dark

Verified independently

Check	Result
mix test	940 tests, 0 failures, 1 skipped (+27)
npm test	157 passing, unchanged
mix format / compile -Werror	clean
mix credo	zero new entries vs main (the chat.ex nesting finding shifts 357 → 416 as lines are added above it)
new dependencies	none
new nav slugs	none — correct, extends the existing chat page
existing chat tests	zero deletions
CSS inside @layer	confirmed

Stack position: base of the chat stack. Merge order is #643 → #644 → #646 → #618.

_{Images live on the pr-assets branch, which exists only to host PR screenshots - it never merges to main and ships in no Hex release.}
