feat(FR-2969): migrate storage host permission management to detail drawer

[ironAiken2]

Resolves #7588 (FR-2971) — under Epic FR-2969.

Overview

Migrate the storage host permission management feature from backend.ai-control-panel (/vfolders/?tab=permissions) into backend.ai-webui's Resources → Storage tab, and absorb the existing standalone Storage Setting page (/storage-settings/:hostname) into a tabbed detail drawer opened from the storage row's gear icon.

Before this change operators had to switch between control-panel (for storage host permissions) and webui (for storage host quotas). This PR consolidates both flows under the gear icon on every storage row, mirroring the project's existing detail-drawer pattern (AgentDetailDrawer, RoleDetailDrawer).

Phase 1 — Drawer skeleton + Capacity Setting tab

• New react/src/components/StorageHostDetailDrawer.tsx and StorageHostDetailDrawerContent.tsx, mirroring AgentDetailDrawer.tsx / AgentDetailDrawerContent.tsx. Drawer header title = storage host id, BAIFetchKeyButton in extra, Suspense inside the content child.
• The Capacity Setting tab embeds <StorageHostSettingsPanel/> (rewritten — see below) with the "quota not supported" <Empty/> fallback wrapped in BAICard for visual consistency.
• Inner tabs use a bare <Tabs> inside BAIFlex (not BAICard with tabList), matching AgentDetailDrawerContent.
• StorageProxyList.tsx row link now opens the drawer (setDrawerStorageHostId(record.id)) instead of navigating to /storage-settings/.... The drawer is mounted at the list level inside BAIUnmountAfterClose.

Capacity Setting panel rewrite (QuotaScopeTable)

StorageHostSettingsPanel was rewritten — the legacy useQueryLoader + usePreloadedQuery + PreloadedQuotaScope wrapper + queryRef ? ... : ... ternary chain is replaced with:

• A new self-contained QuotaScopeTable component (replacing QuotaScopeCard). Owns its own useLazyLoadQuery gated by @skip(if: $skip) + fetchPolicy: 'store-only' when no scope is picked (zero network at idle). Embeds QuotaSettingModal inline under BAIUnmountAfterClose.
• Panel-level Form removed — userId / projectId held in plain useState slots so switching the User/Project radio preserves each side's last pick.
• antd Table → BAITable. The quota_scope_id column uses BAINameActionCell with inline Edit + Unset actions (type: 'danger' + Popconfirm; the Promise-returning onConfirm makes the Popconfirm OK-button spinner reflect mutation state).
• Removes the unreachable addQuotaConfigsWhenEmpty branch — quota_scope is always assigned for any picked entity.

Phase 2 — Permissions tab (rebuilt from the original PR design)

The original design used a single panel-level query that fetched all domains / groups (capped at 500) / keypair resource policies and rendered three full checkbox matrices with a panel-level Update button. After review feedback that scrolling 500+ rows and bulk-editing them was the wrong UX, this PR replaces that with per-entity lazy tables driven by selectors:

• StorageHostPermissionPanel is now a thin coordinator: one panel-level useLazyLoadQuery for vfolder_host_permissions.vfolder_host_permission_list (the canonical permission key list, used for column headers), three useState slots for the per-card selections, and three BAICards — each card has a select in the header extra and a single-row table in the body.
• Top of the panel renders a BAIAlert (type=info) explaining that a user's effective permissions are the union of their domain, project, and keypair resource policy entries.

Three per-entity tables (one row each)

• DomainStoragePermissionTable — V1 domain(name: String): Domain + allowed_vfolder_hosts JSONString. Domain stays on V1 because DomainV2 does not expose allowedVfolderHosts.

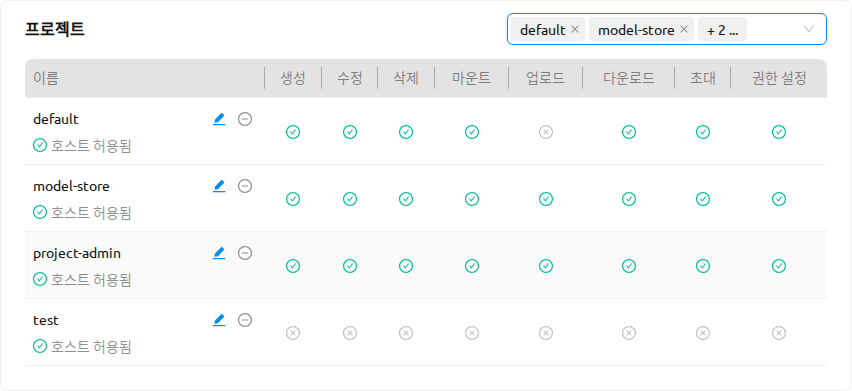

• ProjectStoragePermissionTable — V2 projectV2(projectId: UUID!): ProjectV2 + storage.allowedVfolderHosts: [VFolderHostPermissionEntry!]!. No toGlobalId dance — the V2 query takes the raw UUID returned by BAIAdminProjectSelect.
• KeypairResourcePolicyStoragePermissionTable — V2 adminKeypairResourcePolicyV2(name: String!): KeypairResourcePolicyV2 + allowedVfolderHosts.

Each table:

• Issues its own useLazyLoadQuery gated by @skip + fetchPolicy: 'store-only' when no selection (no network call at idle).
• network-only + bumped fetchKey on save success → re-fetches the entity so the table reflects the just-saved permissions immediately. The V1 modify_* mutations return only { ok, msg }, so Relay cannot auto-update the cached entry.
• useDeferredValue on query variables and fetchKey keeps the previous row visible (with BAITable.loading spinner) instead of falling through to a Suspense fallback during entity switch or post-save refetch.
• Extends BAITableProps<RowType> so the panel can pass locale, scroll, etc. through.
• Name column uses BAINameActionCell with an Edit action. Under the name, a small Typography.Text type="secondary" line shows host-allowed status with CheckCircleOutlined (green) / CloseCircleOutlined (red).
• Permission columns are read-only icons — CheckCircleOutlined (token.colorSuccess) when enabled, CloseCircleOutlined (token.colorTextDisabled) otherwise.

Shared StoragePermissionEditModal

Edit action opens a single shared modal (BAIUnmountAfterClose-wrapped). Each table injects its own onSave callback that runs the appropriate modify_* mutation.

• Top row: master "전체" Checkbox with indeterminate state and n / m count on the right.
• A Divider and a secondary-color "권한" section label below the master, mirroring the antd Dropdown group-header style.
• Permission checkboxes use PERMISSION_DISPLAY_MAP for labels.
• Mount-in-session warning runs as App.useApp().modal.confirm (reversible save → not BAIConfirmModalWithInput, per .claude/rules/destructive-confirmation.md). Triggered when the user's edited set has mount-in-session without both download-file and upload-file.

V1 ↔ V2 permission key mapping

V1 stores permissions as kebab keys in a JSONString (allowed_vfolder_hosts); V2 returns a typed [VFolderHostPermissionEntry!]! with VFolderHostPermissionV2 enum values. Most enum values lowercase-and-dash cleanly (CREATE_VFOLDER ↔ create-vfolder), but SET_USER_PERM ↔ set-user-specific-permission is asymmetric. Without an explicit map, the naive conversion produced set-user-perm, which never matched the canonical column key from vfolder_host_permissions.vfolder_host_permission_list — the "권한 설정" column silently appeared unchecked even when the entity had the permission, and round-tripped saves would corrupt other hosts' entries. react/src/helper/storageHostPermission.ts defines a spelled-out V2_TO_V1_PERMISSION map with a naive fallback for forward-compat.

Mutations still on V1

Reads use V2 (structured array) where available; writes stay on the V1 mutations (modify_domain / modify_group / modify_keypair_resource_policy) since the corresponding V2 mutations are not wired yet. buildAllowedHostsPayloadFromV2 rebuilds the V1 JSONString from V2 entries, preserving all other hosts' entries verbatim.

Drop the queryLoader plumbing

The eager useQueryLoader(StorageHostPermissionsQuery) + loadPermissionsQuery({}, { fetchPolicy: 'store-and-network' }) on row open is gone:

• StorageProxyList.tsx drops useQueryLoader, the load call on row click, and the props that forwarded the ref to the drawer.
• StorageHostDetailDrawer.tsx and StorageHostDetailDrawerContent.tsx drop permissionsQueryRef and onReloadPermissions props.
• Each table's own useLazyLoadQuery replaces the panel-level preloaded query.

Permissions tab gating

Still superadmin only via useCurrentUserRole() from react/src/hooks/backendai.tsx. Domain-admins and regular users see only the Capacity Setting tab.

Phase 3 — Old standalone page removal

• Deletes react/src/pages/StorageHostSettingPage.tsx.
• react/src/routes.tsx: removes the lazy import; the /storage-settings/:hostname route now renders <WebUINavigate to="/agent" replace />.
• react/src/components/MainLayout/WebUISider.tsx: drops the storage-settings → agent ternary in selectedKeys.
• react/src/hooks/useWebUIMenuItems.tsx: drops the two storage-settings special cases.

New BAIAdminKeypairResourcePolicySelect (backend.ai-ui)

Modeled on BAIAdminProjectSelect. Uses the new V2 adminKeypairResourcePoliciesV2(filter: KeypairResourcePolicyV2Filter, orderBy: [KeypairResourcePolicyV2OrderBy!]) (added in 26.4.2) for the paginated dropdown with name-based search (name: { contains }). Drop-open gated network-only (no fetch at mount). KRP name is both identifier and display label, so no separate value query.

Exported from packages/backend.ai-ui/src/components/fragments/index.ts alongside the existing admin selects.

Drive-by fixes (backend.ai-ui)

• BAICard.cloneElement style merge — the extra element's style was being replaced with { fontWeight: 'normal' }, silently wiping any style.width a consumer set on a Select used as the card extra. Now merges so consumer-set sizing wins; fontWeight: 'normal' is the default, and consumer-set fontWeight still wins (spread after).
• BAIDomainSelect Props — interface Props extends Omit<SelectProps, 'role'> (matching BAISelectProps), removing the pre-existing baseline Property 'role' is missing TS error from this component and from the existing UserSettingModal call sites.

i18n

New keys under storageHost.permission.*:

• All, EditPermissions, EditPermissionsAction, EffectivePermissionsNote, HostAllowed, HostNotAllowed, NoDomainSelected, NoProjectSelected, NoKeypairResourcePolicySelected, Permissions

New key under comp:BAIAdminKeypairResourcePolicySelect.*:

• SelectKeypairResourcePolicy

All keys propagated to all 19 target locales by the i18n-translator agent. Korean uses 자원 (not 리소스) per the PR-2969 terminology decision.

Screenshots

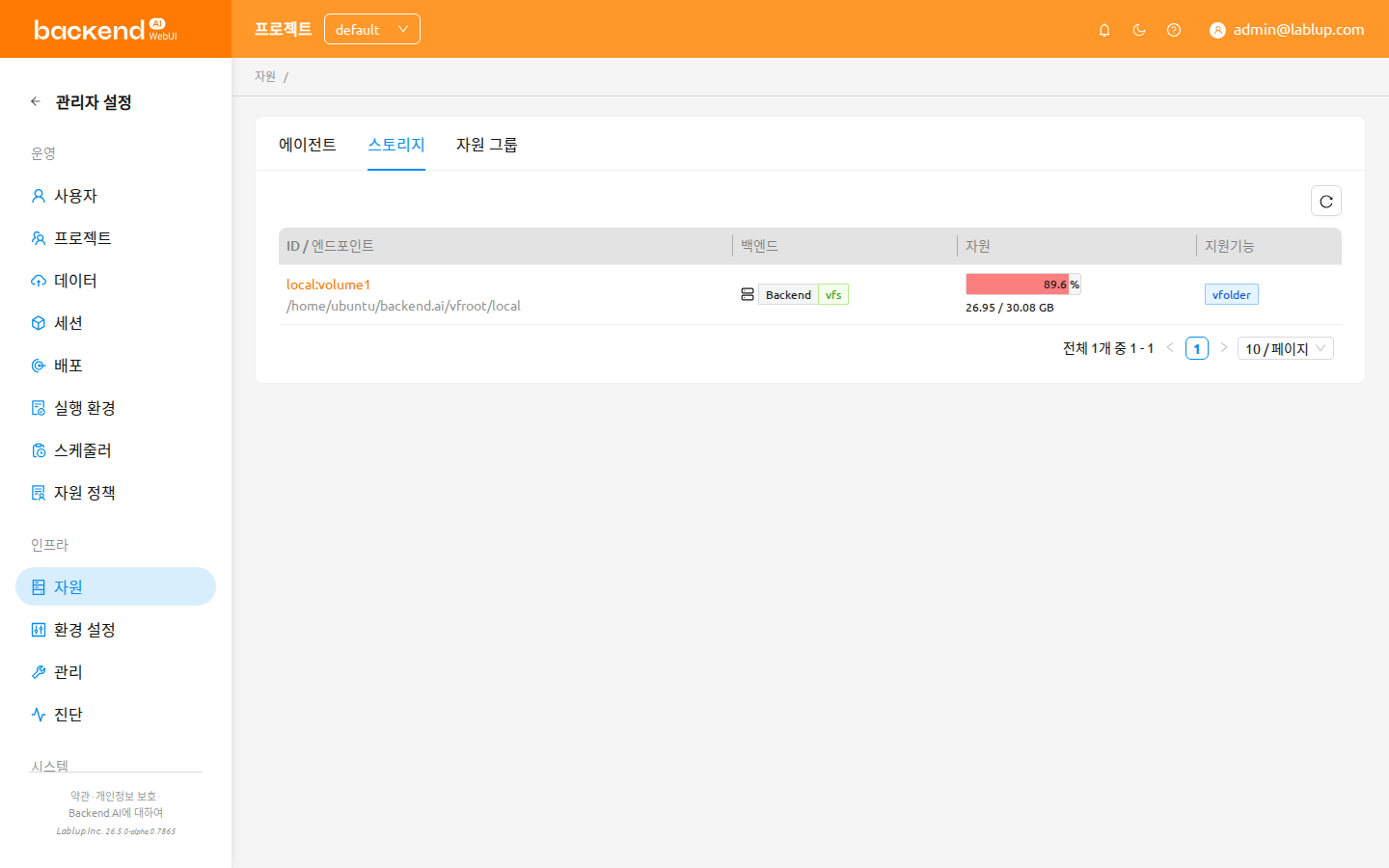

1. Storage list — Resources › 스토리지

Storage list row's ID column is now the drawer trigger (replaces the old route nav to /storage-settings/:hostname).

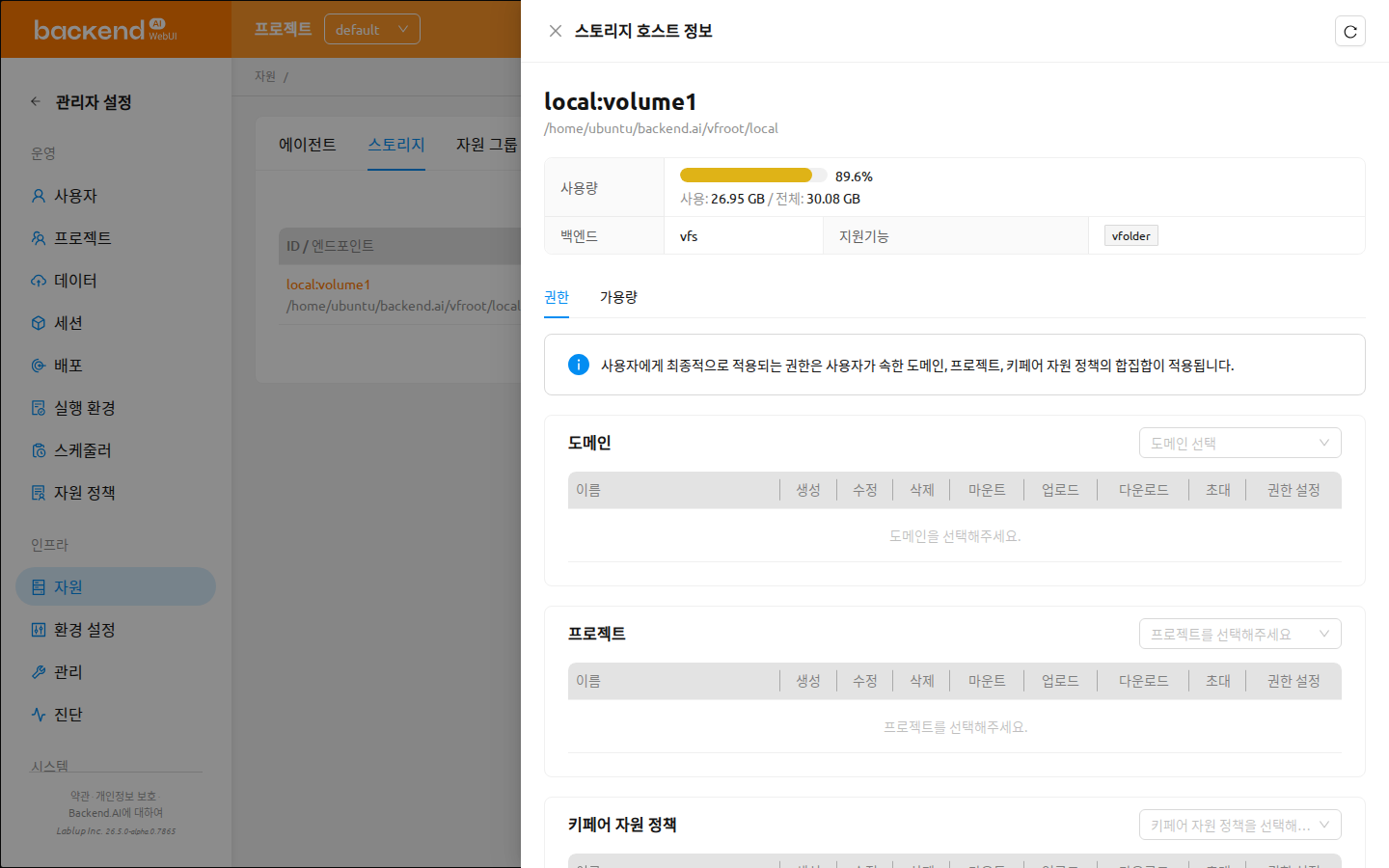

2. Detail drawer — Permissions tab (default for superadmin, no selection yet)

Top BAIAlert explains the union rule. Three cards (도메인 / 프로젝트 / 키페어 자원 정책) — each with its select in the card extra. Tables start empty with a "선택해주세요" hint and skip the network entirely until a selection is made (@skip + store-only).

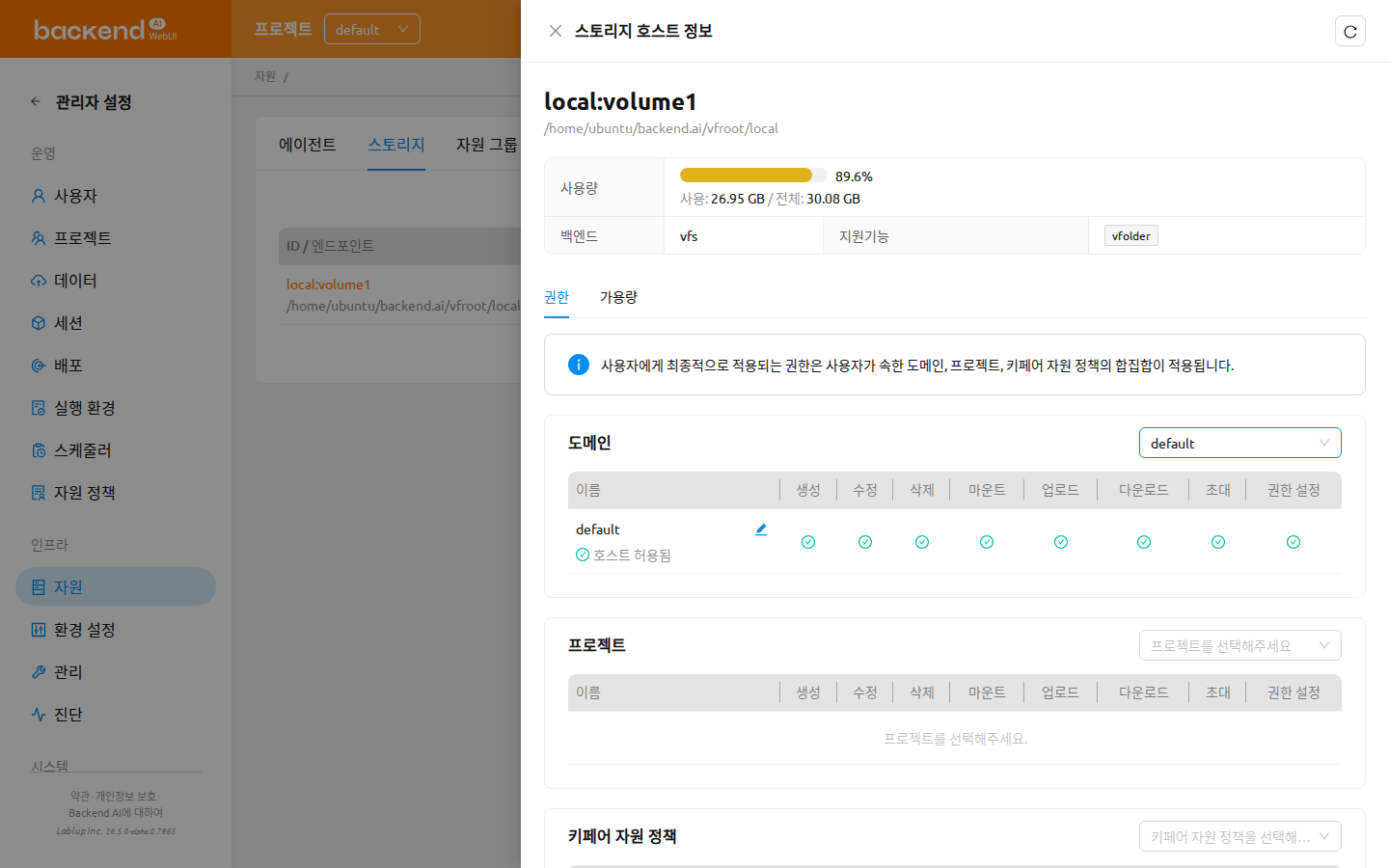

3. Permissions tab — domain selected ("default")

Picking a domain lazily fetches just that single entity (V1 domain(name) for Domain; V2 projectV2 / adminKeypairResourcePolicyV2 for the other two). Name column shows the host-allowed status under the name (✓ "호스트 허용됨" in this case); permission columns render as read-only ✓/✗ icons.

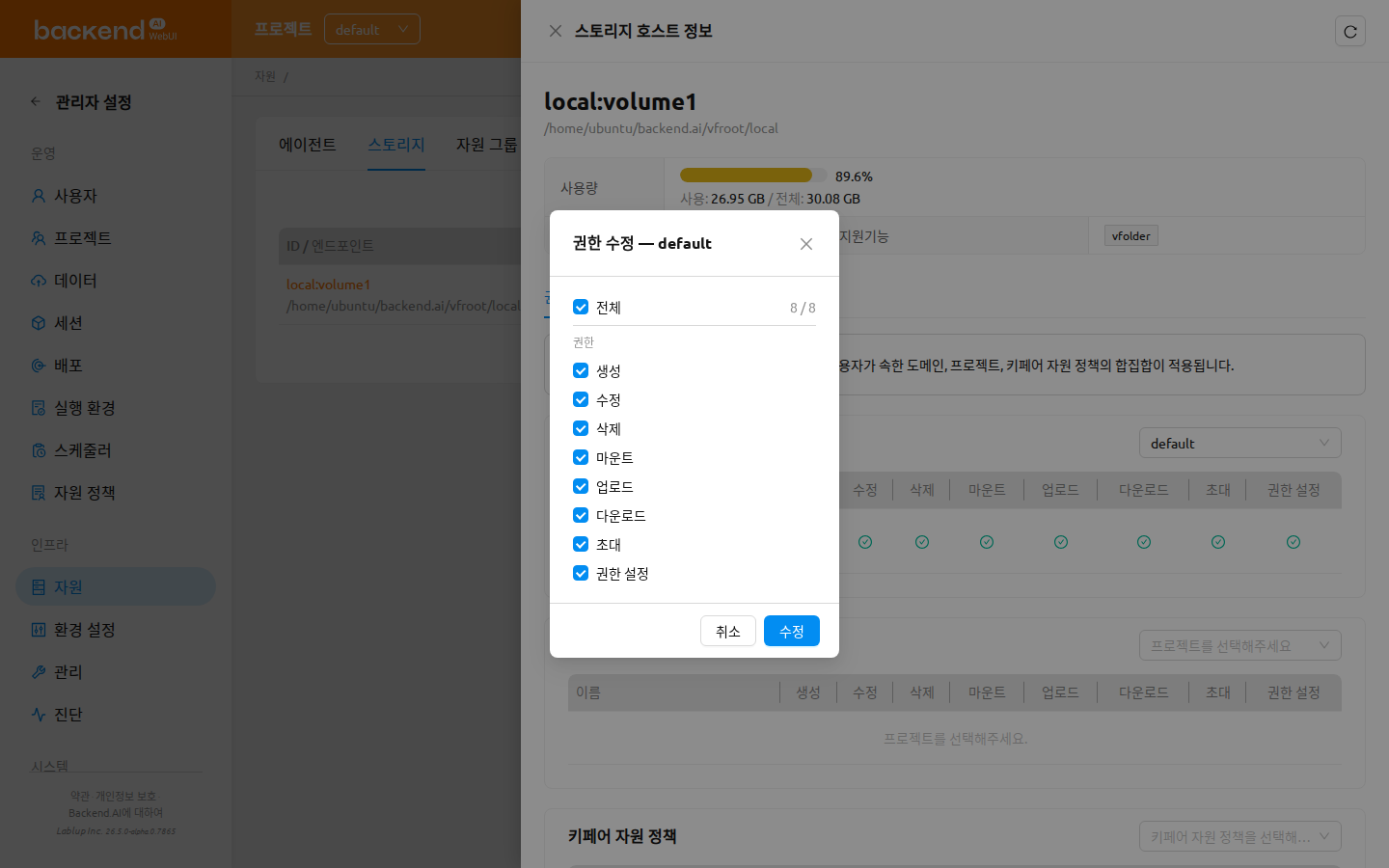

4. Edit modal — 권한 수정 — default

Triggered by the edit icon in the row's BAINameActionCell. Master "전체" checkbox with indeterminate support + n / m count, "권한" section label below the divider, then per-permission checkboxes. Save runs the appropriate V1 modify_* mutation built from the V2 structured allowedVfolderHosts (preserving every other host's entries) and bumps the table's fetchKey so the new state is reflected immediately.

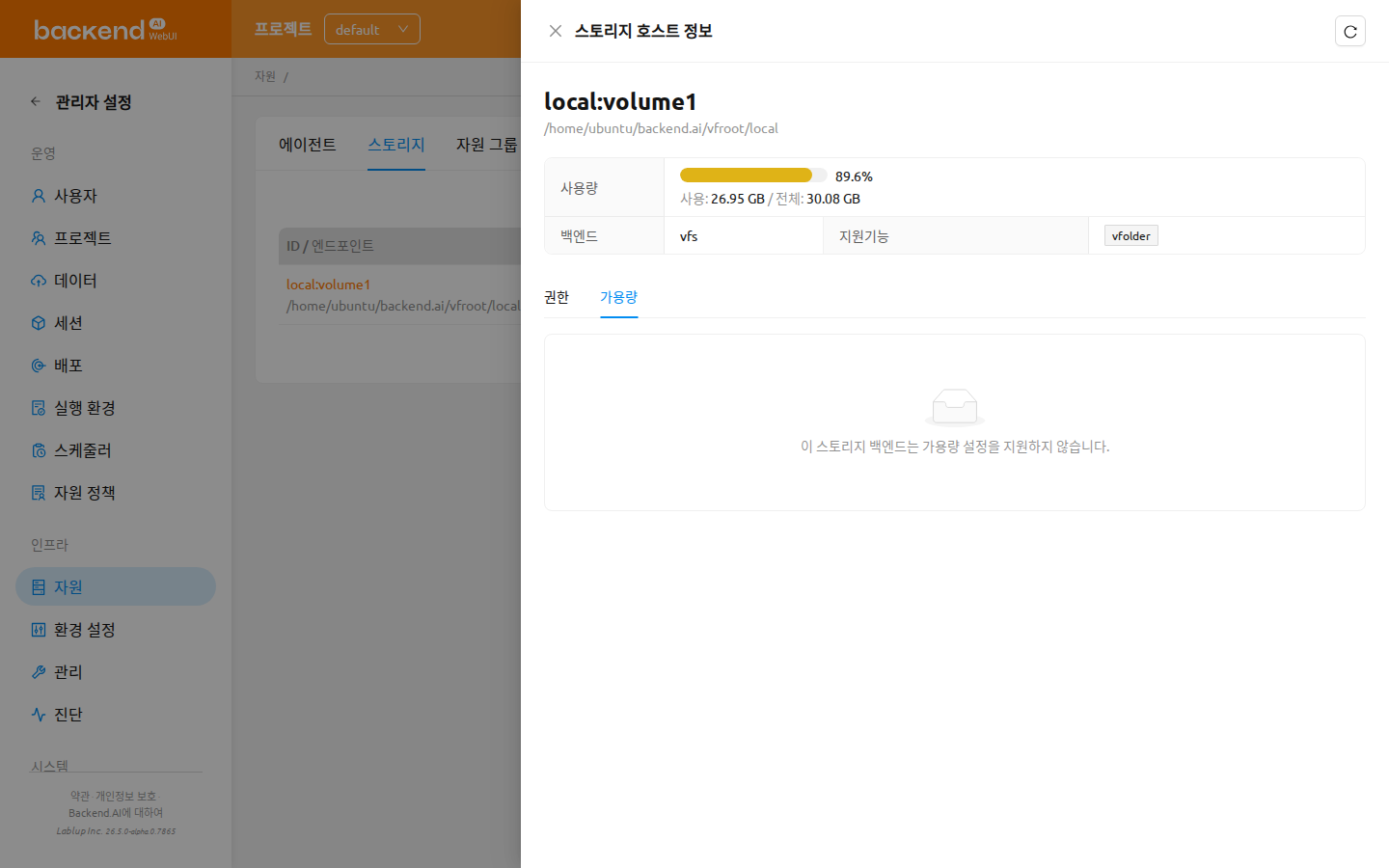

5. Capacity Setting tab — quota not supported

For storage backends without quota capability (here, the vfs test volume), the tab renders the "이 스토리지 백엔드는 가용량 설정을 지원하지 않습니다." <Empty> fallback wrapped in BAICard for visual consistency with the rest of the tab body.

Verification

bash scripts/verify.sh results:

=== Relay ===          PASS
=== Lint ===           PASS
=== Format ===         PASS
=== TypeScript ===     FAIL (pre-existing baseline)
=== Vite warmup paths === PASS

The TypeScript failures are the same pre-existing baseline (15 errors in SessionLauncherPage.tsx, StatisticsPage.tsx, UserCredentialsPage.tsx, UserSettingsPage.tsx, VFolderNodeListPage.tsx) listed in the original PR description. Baseline tsc --noEmit (react/) — original PR reported 835; current PR reports 824 (net -11), thanks to (a) the deleted StorageHostSettingPage.tsx, (b) the rewrite removing several wrapper components, and (c) the BAIDomainSelect Omit<'role'> drive-by clearing 3 baseline errors from sibling call sites. No new TS errors introduced.

Acceptance criteria

• Clicking the gear icon on any storage row opens StorageHostDetailDrawer with the storage host id as the drawer title.
• Drawer body renders StorageHostResourcePanel (Endpoint / Backend / Capabilities / Usage) as a top section.
• Drawer body renders a Tabs with "Permissions" (superadmin, default) and "Capacity Setting".
• Capacity Setting tab renders <StorageHostSettingsPanel/> with the "quota not supported" <Empty/> (wrapped in BAICard) fallback preserved.
• Permissions tab renders three BAICards (Domains / Projects / Keypair Resource Policies), each with a select in extra and a single-row table in the body.
• Each table fetches its entity lazily only after a selection (no idle network).
• Each table shows host-allowed status under the name and check/close icons in the permission columns.
• Edit action opens StoragePermissionEditModal with a master "전체" + indeterminate + n/m count, "권한" section label, and per-permission checkboxes.
• Save issues the correct V1 modify_* mutation with a JSONString payload that preserves permissions for other storage hosts (built from V2 structured entries for Project/KRP).
• Save success bumps the table's fetchKey so the new permission state is reflected without a manual refresh.
• Mount-in-session warning runs as modal.confirm (reversible action) inside the edit modal.
• StorageHostSettingPage.tsx deleted; /storage-settings/:hostname redirects to /agent.
• All new .tsx files start with 'use memo'; no new useMemo / useCallback.
• New i18n keys added and propagated to all 21 locales (en/ko hand-written, 19 others auto-translated).

[github-actions]

Coverage Report for react-coverage (./react)

Status	Category	Percentage	Covered / Total
🔵	Lines	6.56%	1808 / 27555
🔵	Statements	5.33%	2004 / 37549
🔵	Functions	5.38%	300 / 5567
🔵	Branches	3.72%	1306 / 35073

File Coverage

File	Stmts	Branches	Functions	Lines	Uncovered Lines
Changed Files
react/src/routes.tsx	0%	0%	0%	0%	41-1021
react/src/components/DomainStoragePermissionTable.tsx	0%	0%	0%	0%	45-141
react/src/components/KeypairResourcePolicyStoragePermissionTable.tsx	0%	0%	0%	0%	48-155
react/src/components/ProjectStoragePermissionTable.tsx	0%	0%	0%	0%	47-149
react/src/components/QuotaScopeTable.tsx	0%	0%	0%	0%	30-184
react/src/components/StorageHostDetailDrawer.tsx	0%	0%	0%	0%	26-54
react/src/components/StorageHostDetailDrawerContent.tsx	0%	0%	0%	0%	26-54
react/src/components/StorageHostPermissionPanel.tsx	0%	0%	0%	0%	26-61
react/src/components/StorageHostResourcePanel.tsx	0%	0%	0%	0%	15-76
react/src/components/StorageHostSettingsPanel.tsx	0%	0%	0%	0%	19-52
react/src/components/StoragePermissionEditModal.tsx	0%	0%	0%	0%	31-133
react/src/components/StorageProxyList.tsx	0%	0%	0%	0%	34-308
react/src/components/MainLayout/WebUISider.tsx	0%	0%	0%	0%	44-382
react/src/helper/storageHostPermission.ts	0%	0%	0%	0%	19-161
react/src/hooks/useWebUIMenuItems.tsx	0%	0%	0%	0%	64-818

Generated in workflow #1375 for commit e0cd4c2 by the Vitest Coverage Report Action

[Copilot]

Pull request overview

Consolidates storage host quota and permission management into the Backend.AI WebUI “Resources → Storage” flow by replacing the legacy /storage-settings/:hostname page with a tabbed detail drawer opened from the storage list’s gear action, and ports storage host permission management from control-panel into WebUI using native Relay queries/mutations.

Changes:

• Introduces StorageHostDetailDrawer (+ content) and wires the storage list gear icon to open it (with refresh via BAIFetchKeyButton).
• Adds a superadmin-only “Permissions” tab (StorageHostPermissionPanel) that edits allowed_vfolder_hosts for domains/groups/keypair resource policies via Relay mutations.
• Removes the standalone settings page and redirects /storage-settings/:hostname to /agent, cleaning up sidebar/menu selection logic and adding i18n keys (en/ko).

Reviewed changes

Copilot reviewed 16 out of 21 changed files in this pull request and generated 2 comments.

Show a summary per file

File	Description
resources/i18n/en.json	Adds i18n keys for new drawer tabs and permission UI strings (English).
resources/i18n/ko.json	Adds i18n keys for new drawer tabs and permission UI strings (Korean).
react/src/routes.tsx	Removes the settings page route component and redirects /storage-settings/:hostname to /agent.
react/src/pages/StorageHostSettingPage.tsx	Deletes the legacy standalone storage host settings page.
react/src/hooks/useWebUIMenuItems.tsx	Removes storage-settings special-casing for menu selection logic.
react/src/components/MainLayout/WebUISider.tsx	Removes storage-settings special-casing for sider selection.
react/src/components/StorageProxyList.tsx	Replaces navigation to /storage-settings/... with opening the new detail drawer.
react/src/components/StorageHostDetailDrawer.tsx	New drawer shell with refresh button and Suspense-based content loading.
react/src/components/StorageHostDetailDrawerContent.tsx	New tabbed drawer content: resource panel + quota tab + superadmin-only permissions tab.
react/src/components/StorageHostPermissionPanel.tsx	New permission matrix editor for domains/projects/KRPs with Relay queries + mutations and save flow.
react/src/generated/StorageHostDetailDrawerContentQuery.graphql.ts	Relay artifact for the new drawer content query (replacing deleted page query).
react/src/generated/StorageHostPermissionPanelHostPermissionsQuery.graphql.ts	Relay artifact for fetching canonical permission keys.
react/src/generated/StorageHostPermissionPanelPoliciesQuery.graphql.ts	Relay artifact for fetching domains/groups/KRPs permission JSON strings.
react/src/generated/StorageHostPermissionPanelModifyDomainMutation.graphql.ts	Relay artifact for saving domain permission changes.
react/src/generated/StorageHostPermissionPanelModifyGroupMutation.graphql.ts	Relay artifact for saving group permission changes.
react/src/generated/StorageHostPermissionPanelModifyKeypairResourcePolicyMutation.graphql.ts	Relay artifact for saving KRP permission changes.
.specs/FR-2969-storage-host-permission-migration/spec.md	Adds implementation spec for the migration and UX target behavior.
.specs/FR-2969-storage-host-permission-migration/dev-plan.md	Adds dev plan documenting phase breakdown and verification steps.
.specs/FR-2969-storage-host-permission-migration/metadata.json	Adds spec metadata (epic/subtasks).
.specs/FR-2969-storage-host-permission-migration/.context/tasks.md	Adds task tracking context.
.specs/FR-2969-storage-host-permission-migration/.context/progress.md	Adds progress tracking context.

Files not reviewed (5)

• react/src/generated/StorageHostPermissionPanelHostPermissionsQuery.graphql.ts: Language not supported
• react/src/generated/StorageHostPermissionPanelModifyDomainMutation.graphql.ts: Language not supported
• react/src/generated/StorageHostPermissionPanelModifyGroupMutation.graphql.ts: Language not supported
• react/src/generated/StorageHostPermissionPanelModifyKeypairResourcePolicyMutation.graphql.ts: Language not supported
• react/src/generated/StorageHostPermissionPanelPoliciesQuery.graphql.ts: Language not supported

[ironAiken2]

Verify Spec Results

Spec: .specs/FR-2969-storage-host-permission-migration/spec.md

Category	PASS	PARTIAL	MISS
UI behavior	13	0	0
Migration / removal	4	0	0
Role gating	2	0	0
i18n	3	0	0
Code quality	4	1	0
Total	26	1	0

Spec compliance: 26/27 (96%)

The 1 PARTIAL

bash scripts/verify.sh ends with === ALL PASS ===

Relay / Lint / Format / Vite all PASS. TypeScript FAILs on 15 pre-existing baseline errors in unrelated files (SessionLauncherPage.tsx, StatisticsPage.tsx, UserCredentialsPage.tsx, UserSettingsPage.tsx, VFolderNodeListPage.tsx). This PR net-removes 3 baseline errors (the deleted StorageHostSettingPage.tsx contributed 3 of them) and introduces zero new TS errors.

Security

CRITICAL 0 / HIGH 0 / MEDIUM 0 / LOW 2 (already noted by pr-reviewer in batch-review). JSON merge preservation, defensive JSON.parse, superadmin gating, and mount-in-session warning trigger logic all verified against the spec's stated security concerns.

Type B additions (impl beyond spec)

These came out of agent reviews and are improvements over the spec's literal requirements:

• useEffectEvent-based baseline + editable state separation, so dirty diffs survive a mid-edit refetch (store-and-network).
• aria-label="{row name} — {permission label}" on every checkbox in the permission matrix (Copilot a11y feedback).
• NoChanges info toast when the user clicks Update with no dirty rows.
• Per-row failure logging via useBAILogger so support has the full picture when multiple mutations partially fail.

No spec updates needed — these are implementation details below the spec's abstraction level.

Follow-up issues

None. Every Must-Have acceptance criterion is addressed.

Verdict

PASS WITH NOTES — ready for human review and merge.

---

🤖 Generated by /fw:pipeline verify-spec stage

[ironAiken2]

• feat(FR-3020): filter user folder keypair resource policies by user with assigned keypairs column #7672
• feat(FR-3010): split storage host permissions into project/user folder tabs with domain-scoped project effective permissions #7658
• feat(FR-2991): multi-select support in storage permission tables (max 10) #7626
• feat(FR-2969): migrate storage host permission management to detail drawer #7587 👈 (View in Graphite)
• main

---

How to use the Graphite Merge Queue

Add either label to this PR to merge it via the merge queue:

• flow:merge-queue - adds this PR to the back of the merge queue
• flow:hotfix - for urgent changes, fast-track this PR to the front of the merge queue

You must have a Graphite account in order to use the merge queue. Sign up using this link.

An organization admin has required the Graphite Merge Queue in this repository.

Please do not merge from GitHub as this will restart CI on PRs being processed by the merge queue.

This stack of pull requests is managed by Graphite. Learn more about stacking.

[github-actions]

Coverage Report for backend-ai-ui-coverage (./packages/backend.ai-ui)

Status	Category	Percentage	Covered / Total
🔵	Lines	10.77%	528 / 4901
🔵	Statements	9.21%	589 / 6393
🔵	Functions	12.36%	135 / 1092
🔵	Branches	7.74%	486 / 6277

File Coverage

File	Stmts	Branches	Functions	Lines	Uncovered Lines
Changed Files
packages/backend.ai-ui/src/components/BAICard.tsx	100%	100%	100%	100%
packages/backend.ai-ui/src/components/fragments/BAIAdminKeypairResourcePolicySelect.tsx	0%	0%	0%	0%	40-191
packages/backend.ai-ui/src/components/fragments/BAIDomainSelect.tsx	14.28%	0%	0%	14.28%	16-43
packages/backend.ai-ui/src/components/fragments/index.ts	100%	100%	100%	100%

Generated in workflow #1375 for commit e0cd4c2 by the Vitest Coverage Report Action

[agatha197]

Review notes — a few things worth addressing before merge. Great consolidation overall; the lazy-per-entity tables and idle-gating look solid. Comments below are inline. The one runtime check I couldn't verify statically (whether buildAllowedHostsPayloadFromV2 drops zero-permission hosts) is noted on storageHostPermission.ts separately.

[agatha197]

I think it's better to leave redirect link for legacy url instead of removing.

[yomybaby]

LGTM! don't forget to resolve other reviews before merging.

[agatha197]

LGTM

[graphite-app]

Merge activity

• Jun 4, 4:45 AM UTC: agatha197 added this pull request to the Graphite merge queue.
• Jun 4, 4:47 AM UTC: Merged by the Graphite merge queue.
