[GSoC 2017] Retroplayer: Video Shaders by VelocityRa · Pull Request #86 · garbear/xbmc

VelocityRa · 2017-08-27T19:15:14Z

Description

This PR adds support for rendering multi-pass shader presets, as defined in this libretro spec.
The spec essentially introduces shader “preset” files: a standardized file format which allow for multi-pass shader configurations to achieve advanced filtering, without manually copying and pasting shader code all over the place.

They have other features too, but this is their core functionality and reason of existence. The biggest advantage of implementing this would be the vast library of pre-existing shaders written in this format, both for OpenGL (ES), and Direct3D.

Not all can be used yet because they porting to HLSL (thankfully the libretro/RetroArch team is on board with helping us port them), but there are hundreds of presets available.

Here's RetroArch's page on shader presets.

Here's a few other examples.

Motivation and Context

Shaders can be used to:

Smartly scale retro games for higher resolutions using pixel art scaling algorithms. Here's Zelda in 4K.
Emulate the look of old CRT or NTSC monitors for a retro feel.
Provide an easy way to apply borders to the screen.
Remove dithering artifacts
Provide anti-aliasing and smooth scaling

Adjust everything about the colour of the image in a robust way without changing application-wide settings. These including gamma, luminance, contrast, saturation.
These are just a few examples, there can be more applications that I haven’t thought of.
If I end up not implementing support for libretro’s shaders, I aim to develop/port a few shaders that will be provided by default, but shader developers can extend this by providing more.

How Has This Been Tested?

TODO

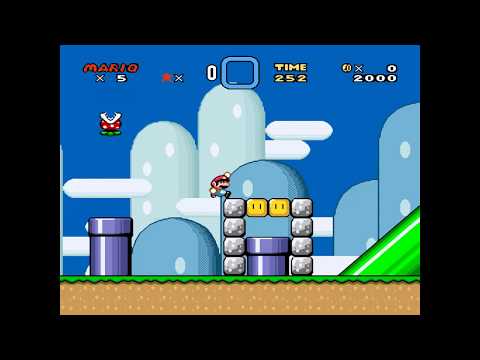

Screenshots Video:

Link

Types of change

Bug fix (non-breaking change which fixes an issue)
Improvement (non-breaking change which improves existing functionality)
New feature (non-breaking change which adds functionality)
Breaking change (fix or feature that would cause existing functionality to change)

Checklist:

TODO

My code follows the Code guidelines of this project
My change requires a change to the documentation, either Doxygen or wiki
I have updated the documentation accordingly
I have read the CONTRIBUTING document
I have added tests to cover my change
All new and existing tests passed

garbear · 2017-08-28T19:10:31Z

+    }
+    else
+    {
+      CRect destRect = g_graphicsContext.StereoCorrection(m_destRect);


Can you move some globals out of this class? Calling globals reduces the modularity of code.

This is copied and pasted from WinRenderer.
How would I move it out of this class? Pass it as an arg from RPRenderManager to RenderUpdate -> Render? Could do the same thing for g_Windowing.GetBackBuffer() below but I'm not sure if it would make sense for the other renderers too.

Any global depending on DX shouldn't be moved to the base class, so those can stay. geometry functions should definitely be moved up the class hierarchy

Of course, it just seemed weird that the existing Kodi code wasn't written this way.

garbear · 2017-08-28T22:50:34Z

    VideoFilterProperties videoFilter;

+    if (child->FirstChild() == nullptr)
+      continue;


Can you also add nullptr checks to the FirstChild() calls below?

Yea. There's an XMLUtils library that might cut down on some of the code.

I didn't use it so that we can move the parsing code to the add-on at some point.

OK, then we should add the nullptr checks to the code as it is

garbear · 2017-08-29T19:13:44Z

+      videoFilter.categoryIndex = atoi(categoryIndexNode->Value());
+    TiXmlNode* descriptionNode;
+    if (((descriptionNode = child->FirstChild("description"))) && ((descriptionNode = descriptionNode->FirstChild())))
+      videoFilter.descriptionIndex = atoi(descriptionNode->Value());


Can you expand this a bit? It's hard to debug when so many things happen on one line. This will probably be a lot of code, tinyXML is rather verbose.

Yeah I was trying to avoid the horrible verboseness, but this way does make it harder to debug parsing.

garbear · 2017-08-29T19:14:51Z

    virtual VideoShaderPasses& GetPasses() = 0;
  };
+
+  inline void IVideoShaderPreset::SetVideoSize(const unsigned videoWidth, const unsigned videoHeight)


Why is this here?

Whoops, leftovers from ReSharper, I'll take care of it later today.

garbear · 2017-08-30T01:52:30Z

    TiXmlNode* pathNode;
-    if(((pathNode = child->FirstChild("path"))) && ((pathNode = pathNode->FirstChild())))
-      videoFilter.path = URIUtils::AddFileToFolder(basePath, pathNode->Value());
+    if((pathNode = child->FirstChild("path")))


Minor, but if statements are missing spaces

garbear · 2017-08-30T01:54:21Z

 */

 #include "RPBaseRenderer.h"
+#include "ServiceBroker.h"


Directories before files

oh I thought you had said the opposite

garbear · 2017-08-30T21:23:21Z

+    g_graphicsContext.Clear(g_Windowing.UseLimitedColor() ? 0x101010 : 0);
+
+  // Set alpha blend state
+  g_Windowing.SetAlphaBlendEnable(alpha < 255);


This function is only available on Windows. Can you move it and the other use of g_Windowing back to the windows renderer?

I'll remove this one but ApplyStateBlock() is fine, it's defined in CRenderSystemBase.

UseLimitedColor isn't so I'll move that one

...Oh it's in CWinSystemBase, which is not Windows specific.

garbear · 2017-08-30T21:58:22Z

 #include "libswscale/swscale.h"
 }

-#include <cstring>


This is required by std::memcpy

sorry. damnit msvc

FernetMenta · 2017-12-21T07:59:23Z

+  // TODO: Doesn't work. Investigate calling this in Execute or binding the SRV first
+  //g_Windowing.Get3D11Context()->PSSetSamplers(2, 1, &m_pSampler);
+  SetShaderParameters( *sourceDX->GetPointer() );
+  Execute({ targetDX->GetPointer() }, 4);


please elaborate on this. What is Execute and what does your comment mean?

The shader spec I'm implementing allows for specifying either linear, or nearest sampling for each pass. This line was supposed to set the sampler state to the appropriate ones we've read from the shader preset file with PSSetSamplers right before rendering each pass/shader, but it didn't work.

This wasn't a huge problem as these samplers were often hardcoded in the shaders after we started porting them from Cg to HLSL/FX, instead of relying on the implementation reading the shader preset files. Ideally it'd work though, as some shaders files are re-used by different presets with different sampling.

Anyway, I think Execute refered to CWinShader::Execute, you may as well disregard that because:
Upon further inspection with the Graphics Debugger (after making the comment) it became apparent that the reason this didn't work was because the FX11 framework was applying its own samplers right before rendering, thereby overwriting whatever sampler I was setting here. I couldn't find a way to set the sampler with FX11 or overwrite, so I left it at that as it was good enough for now.

garbear · 2020-03-05T00:45:17Z

@VelocityRa I rebased this branch on 18.6 (for safety, old commit was e3ddbc4). Ready for you to squash against it

This imports several shader presets from libretro common at commit 187c161 (https://github.com/libretro/common-shaders/tree/187c161).

Hedda · 2020-09-04T08:26:22Z

Are these Video Shaders for RetroPlayer gaming still on the roadmap?

VelocityRa · 2020-09-04T09:37:09Z

The code is probably PR-ready but I still haven't gotten around to resolving the distribution issue for shaders/presets.

Hedda · 2020-09-04T12:07:12Z

The code is probably PR-ready but I still haven't gotten around to resolving the distribution issue for shaders/presets.

Are you thinking about distributing them as Add-ons for Kodi so that the user can install only if they really want to have them?

VelocityRa · 2020-09-05T13:23:00Z

I'm not sure. I don't plan on working on it for the foreseeable future, sorry.
