VNC Station Controller

Windows desktop app (PyQt5) for managing multiple TightVNC sessions in view and control mode, with station-to-station coordination over UDP and built-in chat.

Current version: 1.7.3

Table Of Contents

• Screenshots
• Home Assistant Integration
• User Manual
• What You Need Before Starting
• Example Files (Templates)
• Clone And Set Up Virtual Environment
• Install Dependencies
• Start The App
• Local Secrets (Recommended)
• UDP Port Test Between Two Computers
• How To Use The App (Typical Flow)
• Main Window Layout (Current)
• Chat Commands
• Features (And Why They Exist)
• Custom Sensor Icon Guidelines
• Maintenance Tools
• Testing
• Packaging (Optional)
• How It Works (Short Technical Summary)
• TODO
• License

Screenshots

Current interface examples:

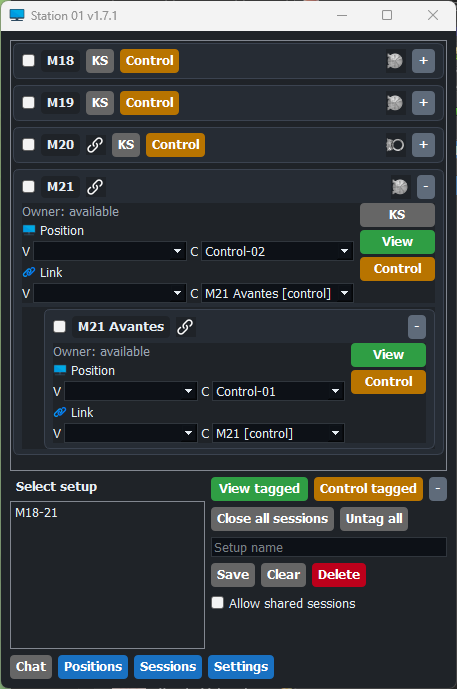

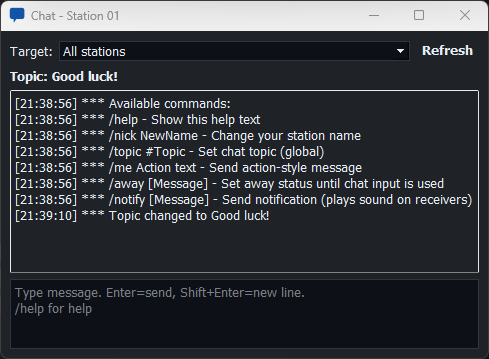

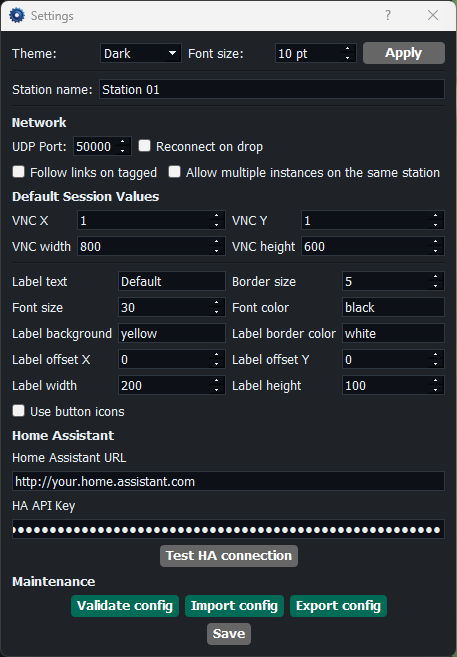

Main Operator Window	Chat	Station Settings

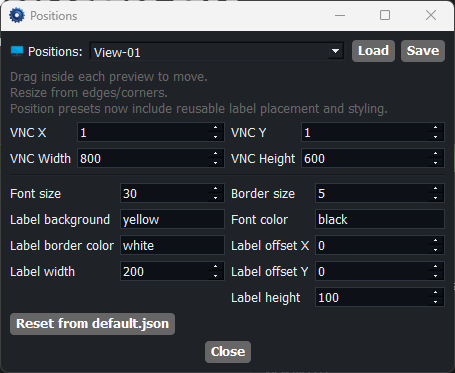

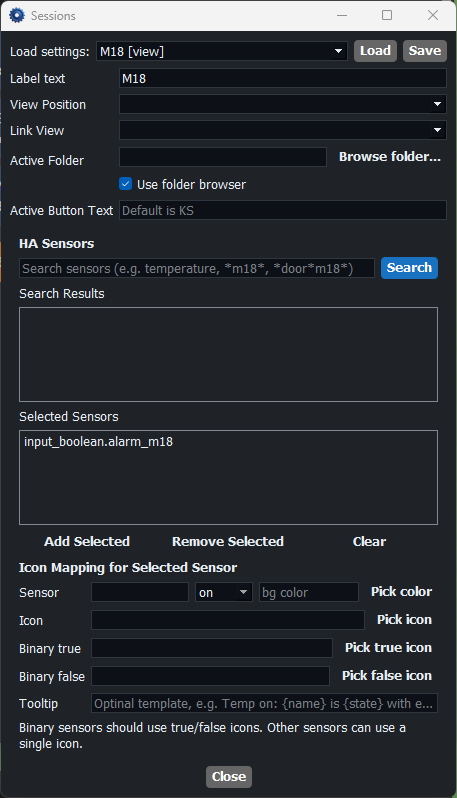

Session Editor	Position Editor	Documentation
		See the manual index for the current role-based guides, workflows, and reference material.

Home Assistant Integration

Home Assistant integration is configured per session and can drive:

• row indicator icons
• binary true/false icon changes
• tooltip text
• alarm color rules for row indicators and session labels

See manual/advanced-user-guide.md for the current configuration workflow.

User Manual

Manuals are split by role:

• Production users: manual/user-guide.md
• Advanced users: manual/advanced-user-guide.md
• Admin/deployment: manual/admin-guide.md

What You Need Before Starting

• Windows 10/11
• Python 3.x
• TightVNC Viewer executable tvnviewer.exe in repo root
• Network where all control stations can exchange UDP traffic on one shared UDP port (default 50000, configurable in Settings)
• The following folders in the project root:
  • vnc-view/ (contains per-target .vnc and optional .json)
  • vnc-control/ (contains per-target .vnc and optional .json)
  • vnc-positions/ (contains reusable position .json presets)
  • vnc-setups/ (contains saved setup .json presets for positions/links)

Expected File Layout

VNC-Station/
  app/
  manual/
  vnc-view/
  vnc-control/
  vnc-positions/
  vnc-setups/
  Example files/
  tests/scripts/
  default.json
  default.local.json.example
  tvnviewer.exe
  requirements.txt

Note: vnc-view/ and vnc-control/ are intentionally git-ignored for station-specific files. The folders remain in the repo via .gitkeep.

Example Files (Templates)

Example files/README.md contains starter templates you can copy, rename and edit:

• dummy.vnc
• dummy.json

Suggested usage:

1. Copy dummy.vnc to vnc-view/<TargetName>.vnc and/or vnc-control/<TargetName>.vnc.
2. Open the copied .vnc in TightVNC Viewer and set host/password, then save.
3. Copy dummy.json to matching <TargetName>.json if you want custom window/label defaults.

Informational reference in the same folder:

• TightVNC-Viewer-Help.txt

Clone And Set Up Virtual Environment

git clone <your-repo-url>
cd VNC-Station
python -m venv .venv
.\.venv\Scripts\Activate.ps1

If PowerShell blocks activation:

Set-ExecutionPolicy RemoteSigned

Install Dependencies

.\.venv\Scripts\python -m pip install --upgrade pip
.\.venv\Scripts\python -m pip install -r requirements.txt

Start The App

.\.venv\Scripts\Activate.ps1
python -m app.main

Local Secrets (Recommended)

• Keep default.json sanitized for git.
• Put machine-local secrets/overrides in default.local.json (not tracked by git).
• Start from default.local.json.example.
• default.local.json overrides default.json at runtime.
• Keep default.local.json.example in repo root as template; do not move it.

Example default.local.json:

{
  "ha_url": "http://home.assistant.you:8123",
  "ha_api_key": "YOUR_REAL_HA_TOKEN",
  "keep_main_window_on_top": "true"
}

Safety notes:

• default.local.json is ignored by git via .gitignore.
• It will not be pushed unless force-added manually (git add -f default.local.json).

Optional git hook setup (blocks committing real ha_api_key in default.json/default.local.json):

git config core.hooksPath .githooks

UDP Port Test Between Two Computers

Use tests/scripts/udp-port-test.ps1 to verify the configured UDP port (default 50000) works in both directions.

Computer B (listener)

.\tests\scripts\udp-port-test.ps1 -Mode listen -Port <UDP_PORT>

Computer A (sender)

.\tests\scripts\udp-port-test.ps1 -Mode send -Port <UDP_PORT> -TargetIP <IP_OF_COMPUTER_B> -Message "Test from A"

Then swap roles and test back from B to A.

If it fails, allow the configured UDP port in firewall (Admin PowerShell example for 50000):

New-NetFirewallRule -DisplayName "VNC Station UDP 50000" -Direction Inbound -Protocol UDP -LocalPort 50000 -Action Allow

Also make sure python.exe is allowed in Windows Defender Firewall.

How To Use The App (Typical Flow)

1. Place .vnc files in vnc-view/ and/or vnc-control/.
2. Start the app on one or more stations.
3. (Optional) assign position presets with Pos V / Pos C.
4. Use row View / Control buttons to toggle one session at a time.
5. Use View tagged / Control tagged to open or close tagged sessions per mode.
6. Use Close all sessions to immediately close every open local session.
7. Use Edit View / Edit Control for per-session labels, links, VNC window wait timing, active paths, and HA sensor settings.
8. Use Positions for visual position editing and Sessions for per-session visual settings.
9. Use setup presets from the setup list on the lower left; click one to apply it immediately, drag to reorder it, and use Setup name + Save / Clear / Delete on the right.
10. Use Clear to drop temporary setup/tag state and reload the persisted per-session settings, with rows minimized afterward.
11. Use Settings and run Validate config, Export config, or Import config from the Settings window.
12. Configure Active Folder / Active Path/File and optional Active Button Text in Edit dialogs or the Sessions window; the active button(s) open the configured file, or the latest file in a folder, and the toast reports the full resolved path that was opened.
13. Use Settings to open app settings (theme, font size, station name, Use button icons, UDP port, reconnect-on-drop, Follow links on tagged, Keep main window on top, allow-multiple-instances option, defaults, HA URL/key, HA connection test, maintenance tools).
14. In Edit View / Edit Control, add HA sensors and map icons (single icon or binary true/false icons), reorder Selected Sensors by drag-and-drop, and optionally set binary state color rules.
15. In the HA sensor search field, press Enter to search immediately and use wildcard patterns such as *m18* or *door*m18*.

Startup note:

• On launch, open actions are briefly locked while the app requests current session ownership from other stations.
• This prevents opening a session before ownership data is synchronized.

Main Window Layout (Current)

• Default startup size: 250x830 (if no saved size exists in app settings)
• Connection list is the resizable/scrollable section
• Lower setup/session area:
  • left side: Select setup title + draggable setup list
  • right side top row: View tagged / Close tagged + Control tagged / Close tagged + + / - all session cards
  • Close all sessions + Untag all
  • Setup name
  • Save + Clear + Delete
  • Allow shared sessions
• Bottom row:
  • Chat + Positions + Sessions + Settings

Chat Commands

• /help show command help
• /nick NewName change station name
• /topic #Topic set global topic for all online stations
• /me Action text send action-style message
• /away [Message] set away status (clears when the local station types in chat again)
• /notify [Message] send a notification message that plays sound on receiving stations

Features (And Why They Exist)

• Connection discovery from vnc-view/ and vnc-control/: quick setup by file drop.
• Per-connection View/Control toggle buttons: open/close one mode from one button.
• Tagging + mode-specific tagged toggles: batch open/close tagged sessions by mode.
• Global close-all action: close every currently open local View/Control session with one click.
• Per-connection settings editor: tune session-owned settings such as label text, fixed positions, links, VNC window wait timing, active paths, and HA mappings.
• Position presets (vnc-positions): reusable VNC geometry plus label placement, size, and visual styling.
• Per-mode position assignment (Pos V / Pos C): assign a preset to each view/control session.
• Unique position assignment guard on View mode: prevents duplicate View position assignment.
• Per-mode session linking (Link V / Link C): opens linked sessions together with view/control actions.
• Linked close behavior: closing a session also closes linked sessions recursively (loop-safe).
• Linked rows in expanded view: linked child sessions render nested under the parent row instead of staying duplicated in the top-level list.
• Per-session Active Folder / Active Path/File buttons with optional custom button text per mode.
• When an Active Folder button opens a file, the toast reports the full resolved path.
• App-level Settings window for theme, font size, station name, UDP port, reconnect-on-drop, Follow links on tagged, Keep main window on top, allow-multiple-instances option, defaults, HA connectivity, and maintenance tools.
• Keep main window on top option: keeps the main operator window above other windows using the same top-most behavior as overlay labels.
• Global settings persistence to JSON: station-level toggles such as reconnect, follow-links-on-tagged, keep-main-window-on-top, and allow-multiple-instances are saved in local JSON overrides as well as applied at runtime.
• Global Use button icons preference: show or hide button icons across the main window and utility windows.
• Single-instance protection by default: blocks launching a second app instance on the same station unless explicitly enabled in settings.
• HA connection testing (/api/) with toast feedback and success/fail button color feedback.
• Edit View/Edit Control HA sensor search from Home Assistant (/api/states).
• HA sensor search supports Enter submit and * wildcard patterns against entity IDs, names, and state text.
• Per-sensor icon mapping: one icon for generic sensors, separate true/false icons for binary sensors.
• Per-sensor tooltip templates with {name}, {state}, and {entity_id} placeholders.
• Drag-and-drop ordering in Selected Sensors; icon display order follows the saved list order.
• Binary sensor state color rules can color the icon display area and session overlay label background.
• Binary sensor state color rules do not change View/Control button colors.
• Multi-icon row indicators: multiple mapped sensors can display side-by-side in each connection row.
• Animated GIF indicators supported in the main window.
• input_boolean.* is treated as binary for true/false icon mapping.
• Setup presets (vnc-setups/*.json) store and restore selected positions and selected links.
• Setup presets are shown in a draggable list, and custom list order is persisted across restarts.
• Last selected setup is persisted across restarts.
• Overlay labels that follow VNC windows: keep session identity visible on screen.
• Configurable initial VNC window wait and retry behavior: helps slower VNC servers finish creating the viewer window before placement is applied.
• Session lock awareness across stations: avoid accidental duplicate control/view.
• Optional shared-session override mode: allow opening a session already held by another station when needed.
• Reconnect on drop option in Settings: automatically restore sessions after unexpected viewer exits.
• Owner line age display scales from seconds to m:ss, h:mm:ss, and d:hh:mm:ss.
• Invalid per-session/default JSON is reported once in a toast and logged, while the app falls back safely to defaults.
• Built-in station chat: coordinate operators without external tools.
• Direct messages + broadcast chat: target one station or all.
• Notify messages with sound: raise attention only when explicitly requested.
• Global topic: keep all stations aligned on current context.
• Station nick/away visibility: improve operational awareness.
• Windows theme support (Auto/Light/Dark): keep UI consistent with operator environment.
• Main/Chat/Settings/Edit/Positions/Sessions windows restore last position+size on reopen.
• Session cleanup on app exit: avoid orphaned VNC processes.
• Config validation tool: catch missing/malformed files before operation.
• Config import/export bundles: replicate JSON and VNC files (including setup presets) between stations quickly.
• Open Settings window refreshes immediately after importing a config bundle.
• Non-blocking toast notifications: reduce modal interruptions during operation.
• Structured rotating logs in logs/app.log: easier troubleshooting and post-incident review.

Custom Sensor Icon Guidelines

When adding your own status icons for HA sensors:

• File types: use .png or .gif
• Background: use transparent background
• Recommended size: 256x256 pixels
• Location: place files in app/images/ (icon picker is restricted to this folder)

For binary-style entities (binary_sensor.*, input_boolean.*):

• use Binary true and/or Binary false icon fields
• if only one of true/false is set, icon is shown only for that state

Maintenance Tools

• Validate config checks:
  • missing tvnviewer.exe / default.json
  • malformed default.local.json (if file exists)
  • malformed JSON in default.json, vnc-view, vnc-control, vnc-positions, and vnc-setups
  • unknown keys and missing .json/.vnc pairings for view/control session configs
• Export config bundles:
  • default.json
  • default.local.json (if present)
  • vnc-view/*.json + vnc-view/*.vnc
  • vnc-control/*.json + vnc-control/*.vnc
  • vnc-positions/*.json
  • vnc-setups/*.json
• Import config restores the same set from bundle zip and refreshes the UI.
• Positions opens the dedicated position editor:
  • movable frameless VNC Preview window (cross-screen(s))
  • movable/resizable frameless Label Preview window using the default label text as a stand-in caption
  • saves reusable VNC geometry plus label offset, size, font, colors, and border settings into vnc-positions/*.json
• Sessions opens the dedicated session editor:
  • loads the first available session automatically on open
  • Load target selector (connection [view/control]) with default fallback if JSON is missing
  • edits per-session label_text, mode-specific View Position / Control Position, mode-specific Link View / Link Control, window_wait_ms, active path/file settings, and HA sensor mappings
  • top Save writes the selected session JSON and persists the chosen position/link selector for the currently loaded mode
  • Active-path browsing supports folder mode or fixed-file mode from the same window
  • Active Button Text shows placeholder help: Default is KS

Testing

Run the included unit tests:

.\.venv\Scripts\python -m unittest discover -s tests -v

Packaging (Optional)

Build a distributable folder with PyInstaller:

.\packaging\build.ps1

Note: packaging builds a windowed app (--windowed), so no black console window appears for users. It also copies default.json, Updates.md, and the manual folder, leaves the runtime vnc-* folders empty for operator-supplied content, and creates a versioned zip such as dist/VNC-Station-Controller-1.7.3.zip.

Cleanup generated build artifacts:

.\packaging\cleanup.ps1

How It Works (Short Technical Summary)

• At startup, the app scans .vnc files in vnc-view/ and vnc-control/ and builds one merged connection list.
• Launching a session starts tvnviewer.exe -optionsfile=<file.vnc>.
• JSON settings are loaded per connection/mode (<name>.json), with fallback to default.json.
• If a session has position_name set, that position preset overrides launch x/y/width/height and the reusable label visual settings.
• Initial VNC window positioning is attempted up to three times, waiting window_wait_ms between attempts; default is 600.
• Overlay label label_x/label_y are treated as offsets from the VNC window top-left.
• If a session has linked_session set, linked sessions are auto-opened for View/Control actions.
• Closing a session also follows linked_session and closes linked sessions recursively.
• A small always-on-top overlay label is created and periodically repositioned to follow the VNC window.
• Setup presets are loaded from vnc-setups/*.json; applying a setup resets the live UI first, then applies saved positions/links without overwriting the session JSON files.
• Clear removes setup-only UI state, reloads persisted session values from disk, clears temporary view assignments that are not fixed in session JSON, and minimizes the rows.
• Stations communicate over UDP broadcast on the configured udp_port (default 50000):
  • presence discovery (hello)
  • session open/close state
  • chat/direct/notify messages
  • global topic updates
• away status updates
• takeover notices
• Session lock logic prevents opening a connection already active on another station, unless Allow shared sessions is enabled.
• The app stores UI preferences (theme, window sizes, font size, and related UI state) via Windows QSettings, while station defaults and global settings toggles are persisted in default.json / default.local.json.
• At startup, the app performs a short session-sync handshake (session_sync_request) before enabling open actions.

TODO

• Local language support

License

This project is MIT licensed (see LICENSE in the repository root).
