A tool to visualize the header dependencies within a C++ project, to help guide choices towards improving compilation times.
Consists of the following tools:
- Shows the number of times each each file is included, either directly or indirectly (by means of being included by another header), within a C++ project
- Mainly serves as a tool to help decide which files to include within the project's precompiled header
-
Generates a .dot/.gv file which gives a visual representation of the #include graph within the entire project
-
Used in conjunction with tools such as Graphviz to produce charts such as the following:

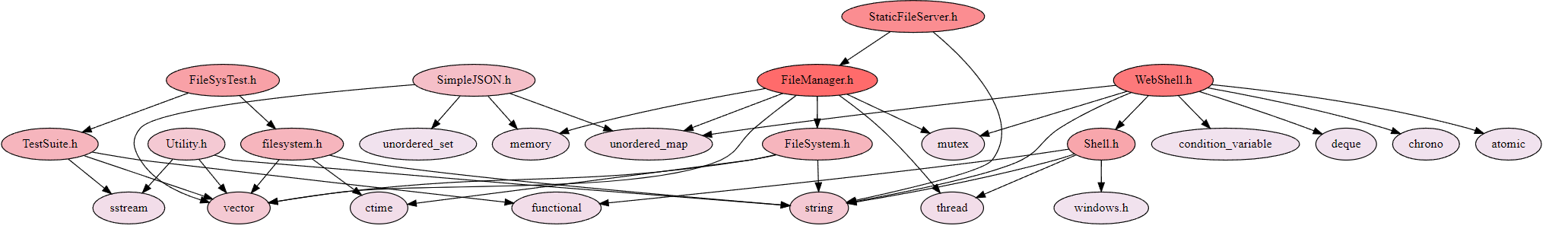

Header Include Graph for a simple project, rendered using Graphviz Online
Portion of a larger header include graph -
Mainly targeted at helping identify key files which contribute significantly to compilation times (i.e. by virtue of being included multiple times & possessing large #include trees by itself)
- Specify the header files within your project either by using the Load button or by specifying the path to a VS C++ project
- (Optional) if the header trees for libraries/external includes are required, specify their directory paths under the Configure section
- Select the desired report type (Include Frequency/Header Graph) and generate the report.
- For header include graphs, load the resultant .gv file into a .dot/.gv viewer such as Graphviz/Graphviz online
